    UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine with Adjustable Impact Height (200-1200mm) and IEC62262 Compliance

    UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine
    Product Overview

    This testing device conforms to IEC62262 standards and is designed for mechanical strength testing of sheet metal components including substation arks and metalloid electric energy metering cubicles. The mounting bracket and impact angle are fully adjustable, making it ideal for energy impact tests exceeding 2J.

    Applications
    • Mechanical impact strength testing for metal sheets
    • Non-metallic power metering cabinets
    • Substation cable distribution boards
    • Cable distribution boxes
    • Electric energy metering cabinets and similar equipment enclosures
    Technical Parameters

    Pendulum Specifications: Length: 1000mm; External diameter: 15.9 mm; Thickness: 1.5 mm; Material: Steel

    Adjustable Impact Height: 200-1200mm

    Mobility: The impact apparatus can be moved on all sides

    Striking Elements Features
    Striking Element Specifications
    Energy (J)≤1 ±10%2 ±5%5 ±5%10 ±5%20 ±5%50 ±5%
    Equivalent Mass ±2% (kg)0.25(0.2)0.51.75510
    MaterialNylonSteelSteelSteelSteelSteel
    R (mm)102525505050
    D (mm)18.5(20)356080100125
    f (mm)6.2(10)710202025
    r (mm)--6-1017
    Height of Falling
    Falling Height Specifications
    Energy (J)0.140.2(0.3)0.35(0.4)0.50.7125102050
    Equivalent Mass (kg)0.25(0.2)0.25(0.2)0.25(0.2)(0.2)0.250.250.51.7510
    Dropping Height ±1% (mm)56(100)80(150)140(200)(250)200280400300200400
    IK Code and Corresponding Impact Energy
    IK Code to Impact Energy Mapping
    IK CodeIK00IK01IK02IK03IK04IK05IK06IK07IK08IK09IK10
    Impact Energy (J)a0.140.20.350.50.71251020
    Product Images

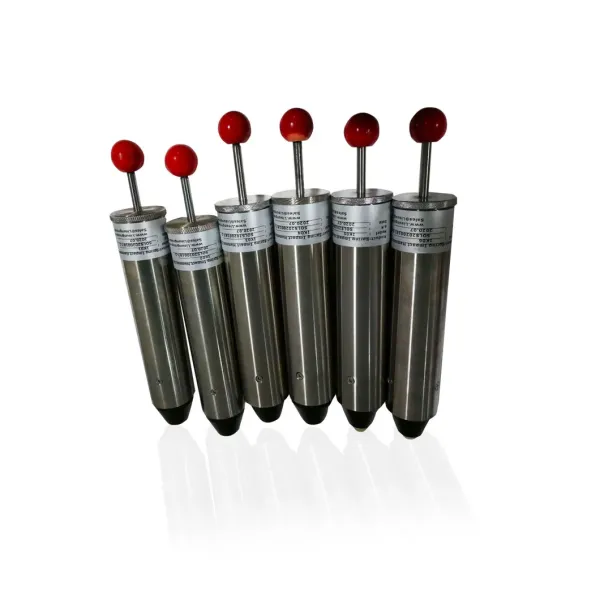

    UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine IK Level Pendulum Impact Test Apparatus for IK01-10 Testing Equipment IK Level Pendulum Impact Test Apparatus for IK01-10 Testing Equipment - Side View
    Our Service

    We provide comprehensive Consultative Selling services throughout the entire business process:

    1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer needs.

    2) Specifications Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.

    3) Production and Delivery Process: Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.

    4) Installation and After-Sales Service: Provide on-site installation support and comprehensive after-sales service.

    Frequently Asked Questions

    1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

    Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for our customers. If your machine requires service, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.

    2. What about the delivery term?

    Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.

    3. Do you accept customization services? Can I have my logo on the machine?

    Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

    4. How can I install and use the machine?

    We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
