Versatile Multi-Material Tensile Strength Tester with
Interchangeable Grips UP-2003
Product Overview

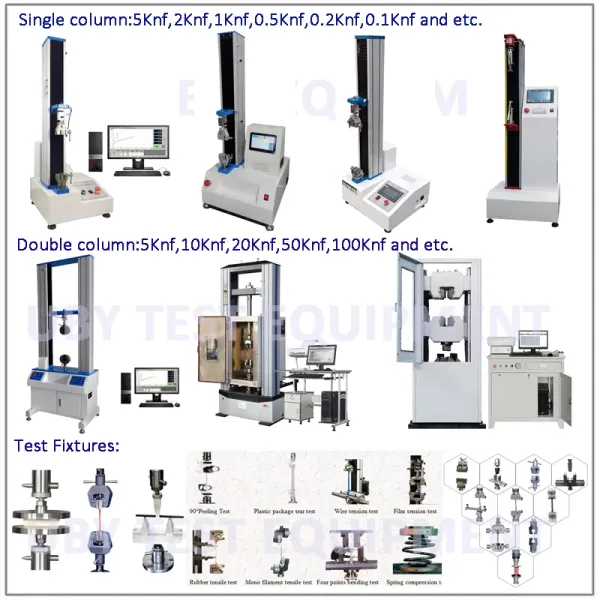

The electronic digital display metal material rubber film universal
tensile strength tester is designed for comprehensive material
testing applications across various industries.
Applications
Suitable for testing metal and non-metal materials including
rubber, plastic, wires and cables, fiber optic cables, seat belts,
belt composite materials, plastic profiles, waterproof rolls, steel
pipes, copper materials, profiles, spring steel, bearing steel,
stainless steel, castings, steel plates, steel strips, and
non-ferrous metal wires. Capable of performing stretching,
compression, bending, shear cutting, peeling, tearing, and
two-point extension tests.
Technical Features
Features a microcomputer-type top pressure meter design with
advanced construction including high-precision, low-resistance,
zero-clearance roll strain screw rods and oriented columns. The
double column and double silk rod structure provides exceptional
test force capacity up to 20,000N. Offers stable and reliable
performance with high precision and user-friendly operation.
Standard Accessories
- Suitable grips tailored to customer sample requirements
- Software for test control, data acquisition, and reporting
- English operation tutorial video
Technical Specifications
| Model | UP-2003 |
|---|
| Range of Speed | 50-400mm/min |
|---|
| Motor | AV Servo Motor |
|---|
| Capacity Options | 5, 10, 20, 50, 100, 200, 500KG optional |
|---|
| Resolution | 1/150,000 |
|---|
| Effective Testing Space | 400mm MAX |
|---|
| Accuracy | ±0.5% |
|---|
| Operation Method | Windows X P, Win7 operation, computer control |
|---|
| Standard Accessories | Computer, printer, system operation manual |
|---|
| Optional Accessories | Customized clamps, force sensors, printer, operation manual |
|---|
| Weight | 450KG |
|---|
| Dimensions (W×D×H) | 76×42×185CM |
|---|
| Power Requirements | 1PH, AC220V, 50/60Hz |
|---|
| Stroke Protection | Upper and lower protection, prevents over preset |
|---|
| Force Protection | System setting |
|---|
| Emergency Stop Device | Handling emergencies |
|---|
Our Service Commitment
Customer Inquiry Process
We provide consultative selling services, discussing testing
requirements and technical details to suggest suitable products and
provide competitive pricing.
Specifications Customization Process
We create detailed drawings and reference photos for customized
requirements, confirming final solutions and pricing with
customers.
Production and Delivery Process
Machines are produced according to confirmed PO requirements with
production progress photos provided. Final confirmation,
calibration, testing, and packing are completed before timely
delivery.
Installation and After-Sales Service
We provide field installation services and comprehensive
after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I
ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers,
Leather shoe testing equipment, and Plastic Rubber testing
Equipment. Every machine includes a 12-month warranty after
shipment with free maintenance. For urgent issues, contact us via
email or phone for troubleshooting support with solutions provided
within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; Custom orders: 15-20
working days after payment; Urgent requests receive special
arrangements.
Do you accept customization services? Can I have my logo on the
machine?
Yes, we offer both standard and customized machines according to
your requirements, including OEM and ODM services with logo
placement.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are
shipped fully assembled - simply connect power and begin operation.
On-site installation assistance is available when necessary.
